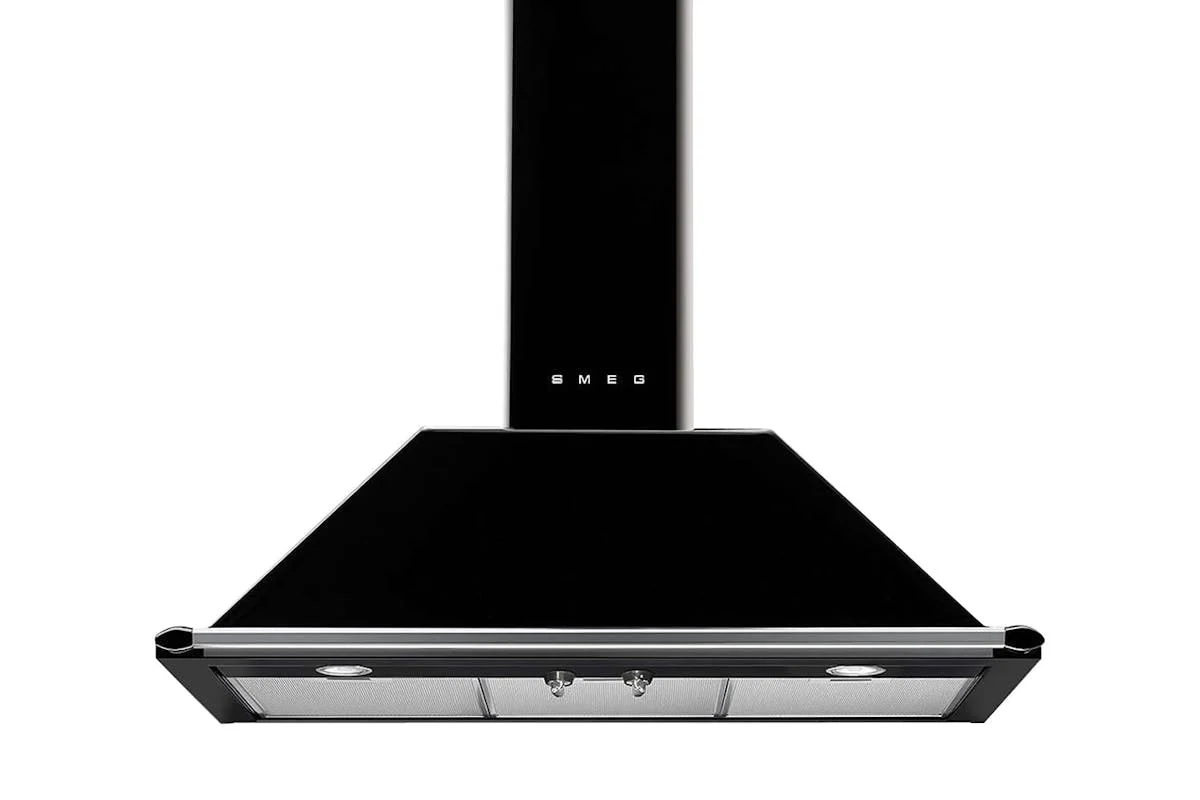

Smeg Victoria 90cm Chimney Hood

Victoria Aesthetic
With its nostalgic curvy look, Victoria offers a unique retro- inspired aesthetic featuring chunky controls and signature branding perfect for adding real character to your kitchen. Smeg's Victoria hood is available in 90cm, 100cm and 110cm widths and choice of colourways.
Intensive Extraction
A powerful intensive speed can be selected when quick extraction is needed,whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.
Intensive Extraction
A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.
LED Lighting
These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.
Ducting Or Re-Circulating
Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.
Ducting Out
Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood (which can be found in the features tab)
• SP150 - Simple vent kit for hoods with a 150mm diameter vent outlet
• SP150FLAT - Comprehensive vent kit for hoods with a 150mm diameter vent outlet
• SP215 - Simple vent kit for hoods with a 120mm diameter vent outlet
• SP217 - Comprehensive vent kit for hoods with a 120mm diameter vent outlet
Re-Circulating
Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.
Aesthetics:
• Colour: Black
• Finishing: Gloss
• Aesthetics: Victoria
• Design: Chimney
• Material: Painted material
• Type of steel: Brushed
Controls:
• Control setting: Control knobs
• Control knobs: Victoria
• No. of controls: 2
• Controls colour: Steel effect
Technical Features:
• No. of lights: 2
• Light type: LED
• Light power: 1 W
• Light color temperature scale (°K): 3000 °K
• Free outlet maximum capacity: 820 m3/h
• Motor power: 275 W
• No. of filters: 3
• Anti-grease filters: Aluminium
• Minimum distance from GAS hob: 750 mm
• Vent outlet: 150 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Non return valve: Yes

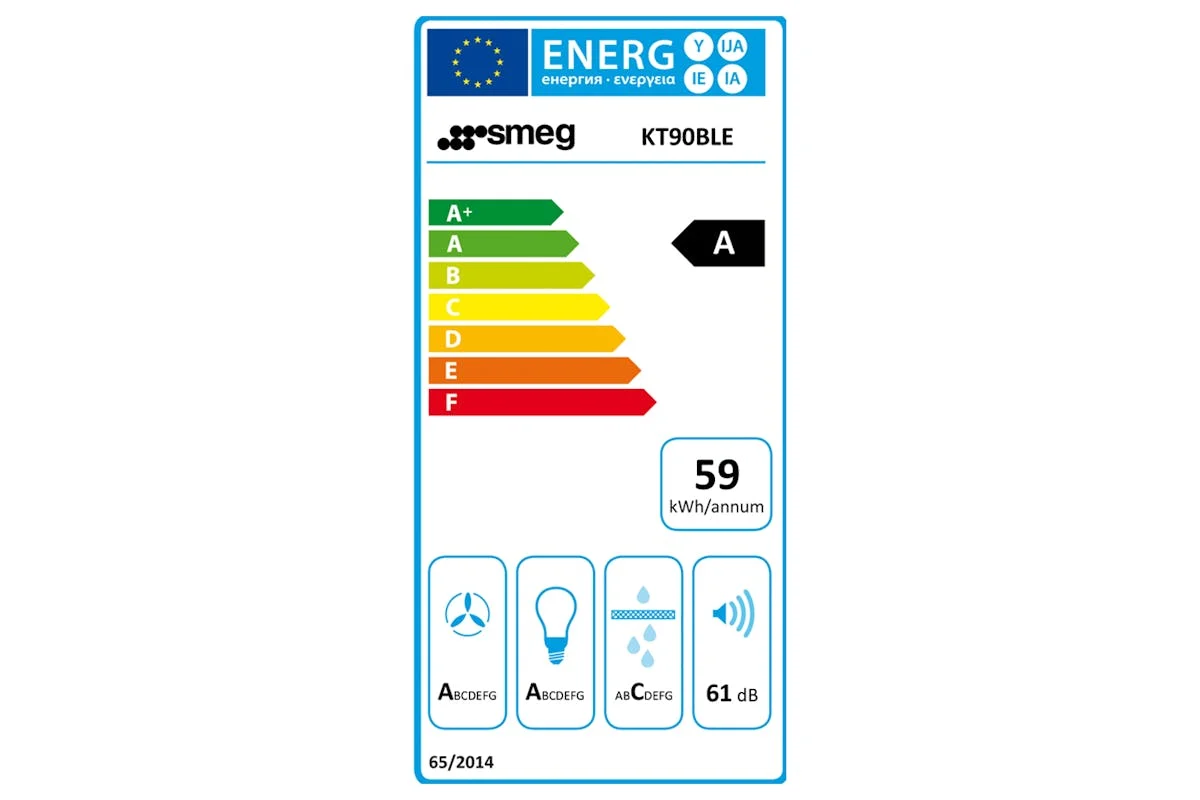

Performance / Energy Label:
• Energy efficicency class ( EEC): A
• Fluid Dynamic Efficiency class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): C
• Lighting Efficiency Class (LEC): A
• Annual Efficiency Consumption (AEChood): 59 KWh/year
• Fluid Dynamic Efficiency (FDE): 30
• Lighting Efficiency (LE): 102.3 lux/W
• Grease Filtering Efficiency (GFE): 76.6 %
• Air flow at minumum speed (Qmin): 334 m3/h
• Maximum extraction rate: 567 m3/h
• Intensive extraction rate: 788 m3/h
• Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)
• Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 61 dB(A)
• Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 69 dB(A)
• Time increase factor (F): 1.00
• Energy Efficiency Index per first cavity: 52.4
• Measured air flow rate at best efficiency point (Qbep): 438 m3/h
• Measured air pressure at best efficiency point (Qbep): 434 Pa
• Measured electric power input at best efficiency point (Wbep): 176 W
• Normal Power of the light system (Wl): 2 W
• Average illumination of the light on the cooking surface (Emiddle): 225 lux
• Sound power level at highest setting (Lwa): 61 dB(A)
Electrical Connection:
• Nominal power: 278 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm
Speed 1:
• Extraction rate IEC 61591: 334 m3/h
• Noise level IEC 60704-2-13: 49 dB(A)
• Power: 199 W
Speed 2:
• Extraction rate IEC 61591: 439 m3/h
• Noise level IEC 60704-2-13: 57 dB(A)
• Power: 231 W
Speed 3:
• Extraction rate IEC 61591: 567 m3/h
• Noise level IEC 60704-2-13: 61 dB(A)
• Power: 260 W
Intensive Speed:
• Extraction rate (IEC 61591): 788 m3/h
• Noise level IEC 60704-2-13: 69 dB(A)
• Power: 280 W

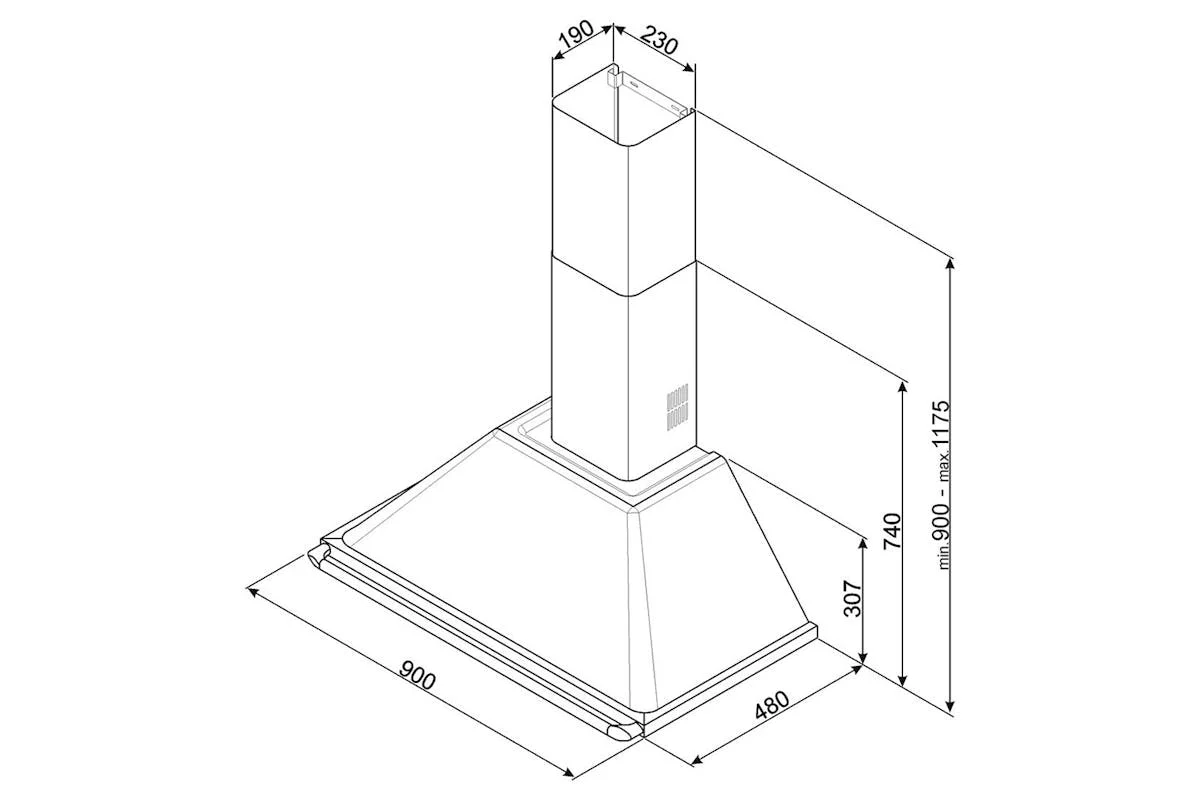

Logistic Information:
• Dimensions of the product (mm): 740x895x530
• Width: 895 mm
• Depth (mm): 530 mm
• Product Height (mm): 740 mm
• Net weight (kg): 16.500 kg
