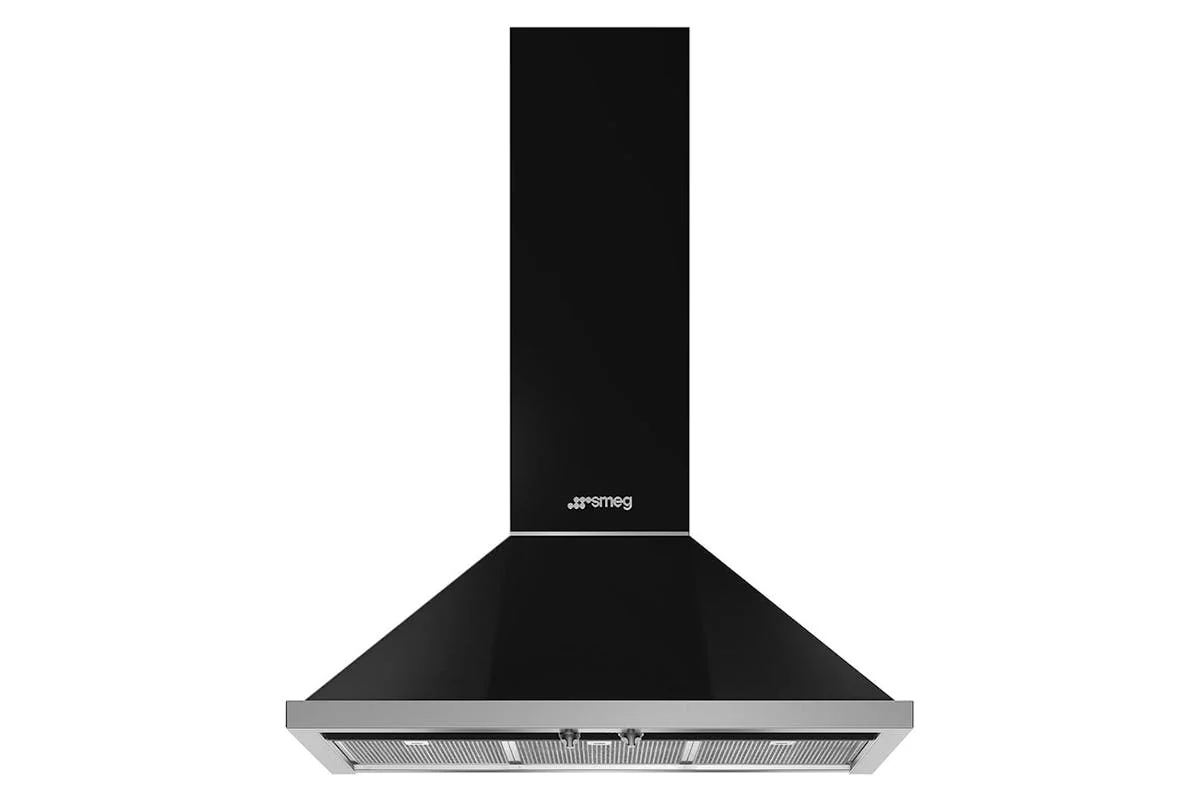

Smeg 90cm Chimney Hood | Black

Portofino Aesthetic
Inspired by the rich tones of the Italian Riviera, meet Smeg's freshest design yet, perfect for contemporary living. Portofino by Smeg.
Portofino hoods are elegant and co-ordinate with the Portofino cooker range, whilst offering solid extraction and low noise levels.
Intensive Extraction
A powerful intensive speed can be selected when quick extraction is needed, whether you’re creating a sizzling stir fry or a preparing an aromatic curry, even the strongest cooking odours will be removed in no time.
Stainless Steel Filters
Easy cleaning with washable stainless steel metal grease filter(s) which can be put into the dishwasher
LED Lighting
These lights are long lasting, save money and perfectly illuminate the work surface below. They can be switched on regardless of the fans, and used simply to create ambience lighting in the kitchen.
Ducting Or Re-Circulating
Most Smeg hoods offer the choice of ducting or re-circulating, so you can choose your preferred method.
Ducting Out
Ducting out extracts cooking fumes and expels them outside, using a vent kit (available as an optional accessory) The diameter of the ducting hose should match the vent outlet of the hood (which can be found in the features tab)
• SP150 - Simple vent kit for hoods with a 150mm diameter vent outlet
• SP150FLAT - Comprehensive vent kit for hoods with a 150mm diameter vent outlet
• SP215 - Simple vent kit for hoods with a 120mm diameter vent outlet
• SP217 - Comprehensive vent kit for hoods with a 120mm diameter vent outlet
Re-Circulating
Re-circulating extracts the cooking fumes and passes them through active charcoal filters (available as an optional accessory), recirculating the cleaned air back into the room. To find out which charcoal filter your hood needs, check the accessory tab on the hoods specification.
Aesthetics:
• Colour: Black
• Aesthetics: Portofino
• Design: Chimney
• Material: Stainless Steel + Painted Material
• Type of steel: Brushed
Controls:
• Control setting: Control knobs
• Control knobs: Portofino
• No. of controls: 2
• Controls colour: Steel effect
Technical Features:
• No. of lights: 2
• Light type: LED
• Light power: 2 W
• Light color temperature scale (°K): 4000 °K
• Free outlet maximum capacity: 815 m3/h
• Motor power: 275 W
• No. of filters: 3
• Anti-grease filters: Stainless steel
• Minimum distance from GAS hob: 750 mm
• Vent outlet: 150 mm
• Minimum distance from ELECTRIC hob: 650 mm
• Non return valve: Yes

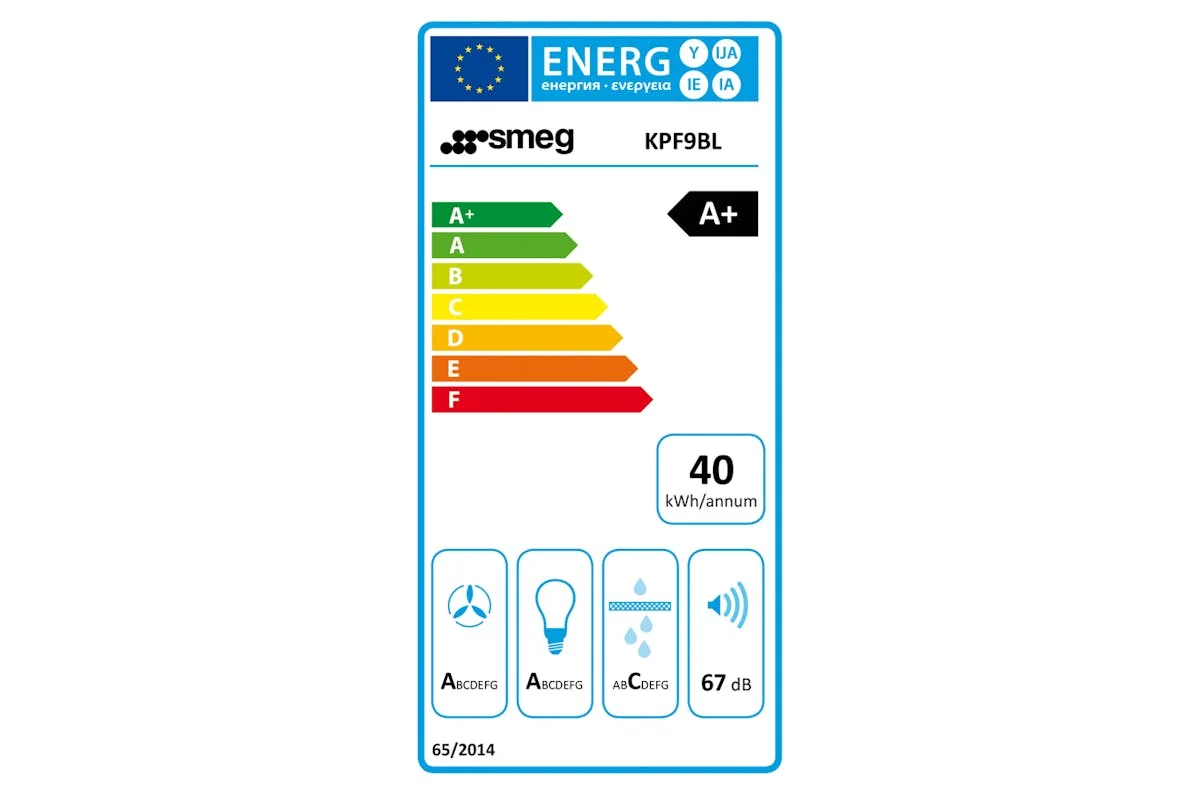

Performance / Energy Label:
• Energy efficicency class ( EEC): A+
• Fluid Dynamic Efficiency class (FDEC): A
• Grease Filtering Efficiency Class (GFEC): C
• Lighting Efficiency Class (LEC): A
• Annual Efficiency Consumption (AEChood): 40 KWh/year
• Fluid Dynamic Efficiency (FDE): 36.2
• Lighting Efficiency (LE): 78.2 lux/W
• Grease Filtering Efficiency (GFE): 78.5 %
• Air flow at minumum speed (Qmin): 288 m3/h
• Maximum extraction rate: 630 m3/h
• Intensive extraction rate: 781 m3/h
• Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 48 dB(A)
• Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
• Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 72 dB(A)
• Time increase factor (F): 1.00
• Energy Efficiency Index per first cavity: 40.3
• Measured air flow rate at best efficiency point (Qbep): 413 m3/h
• Measured air pressure at best efficiency point (Qbep): 476 Pa
• Measured electric power input at best efficiency point (Wbep): 151 W
• Normal Power of the light system (Wl): 2 W
• Average illumination of the light on the cooking surface (Emiddle): 172 lux
• Sound power level at highest setting (Lwa): 67 dB(A)
Electrical Connection:
• Nominal power: 277 W
• Voltage: 220-240 V
• Frequency (Hz): 50-60 Hz
• Power supply cable length: 1000 mm
Speed 1:
• Extraction rate IEC 61591: 288 m3/h
• Noise level IEC 60704-2-13: 48 dB(A)
• Power: 173 W
Speed 2:
• Extraction rate IEC 61591: 421 m3/h
• Noise level IEC 60704-2-13: 63 dB(A)
• Power: 199 W
Speed 3:
• Extraction rate IEC 61591: 630 m3/h
• Noise level IEC 60704-2-13: 67 dB(A)
• Power: 223 W
Intensive Speed:
• Extraction rate (IEC 61591): 781 m3/h
• Noise level IEC 60704-2-13: 72 dB(A)
• Power: 224 W

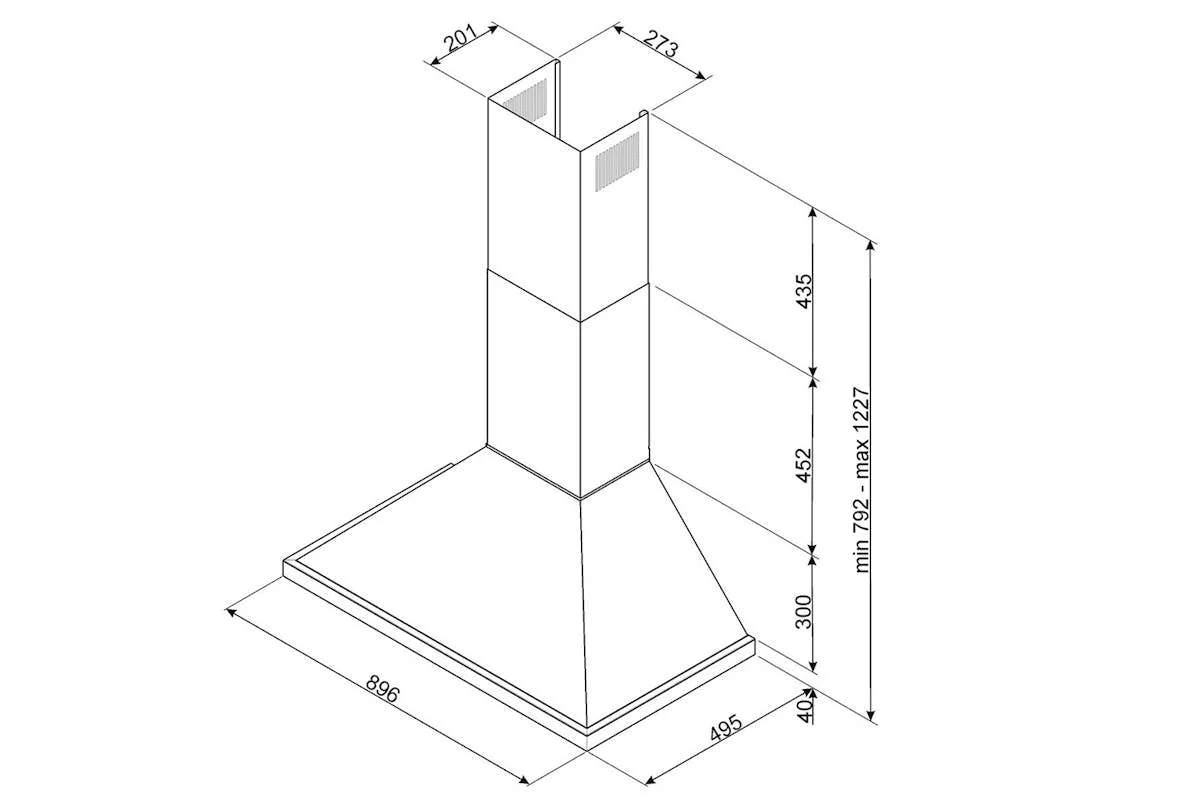

Logistic Information:
• Dimensions of the product (mm): 1227x896x495
• Width: 896 mm
• Depth (mm): 495 mm
• Product Height (mm): 1227 mm
• Net weight (kg): 18.220 kg
